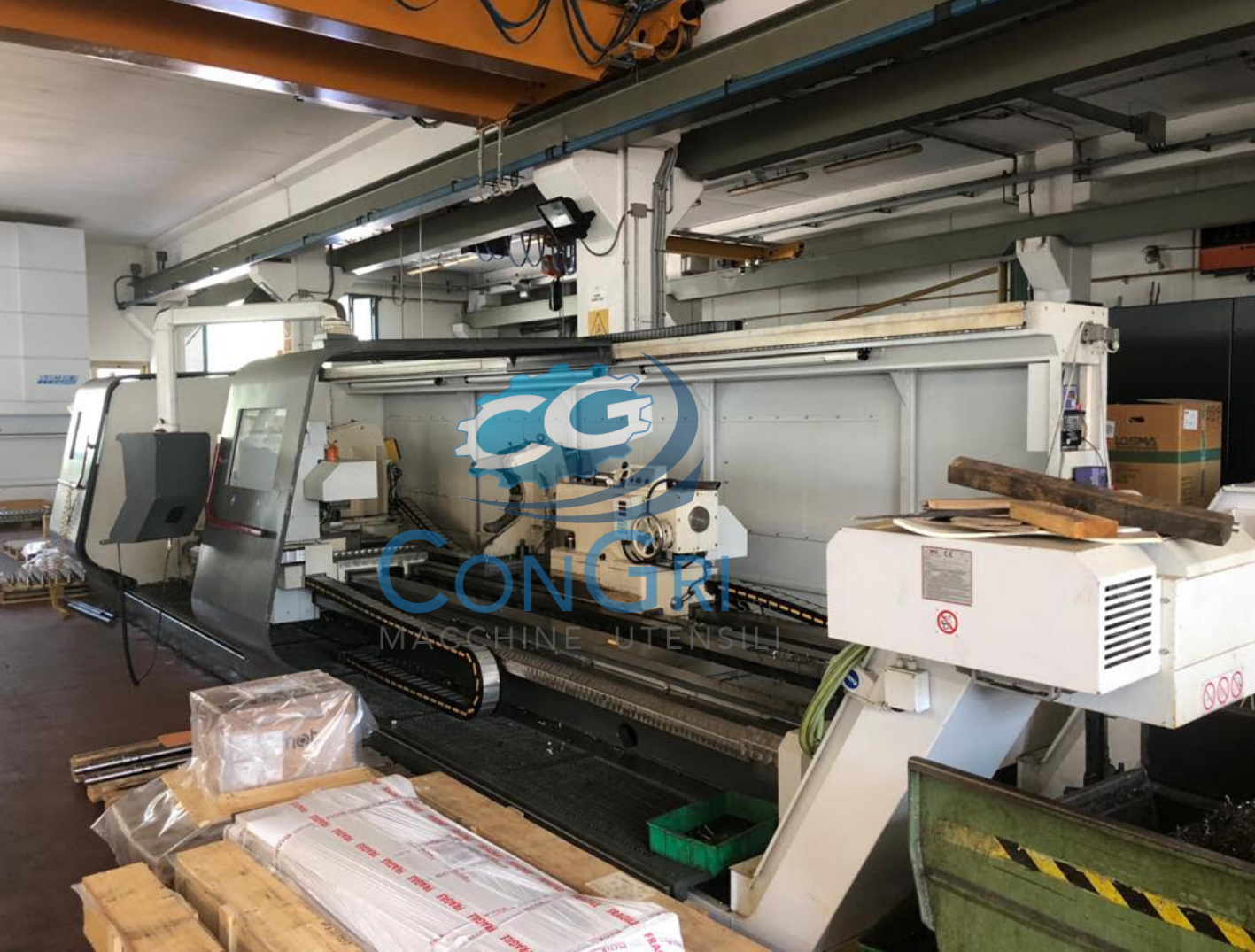

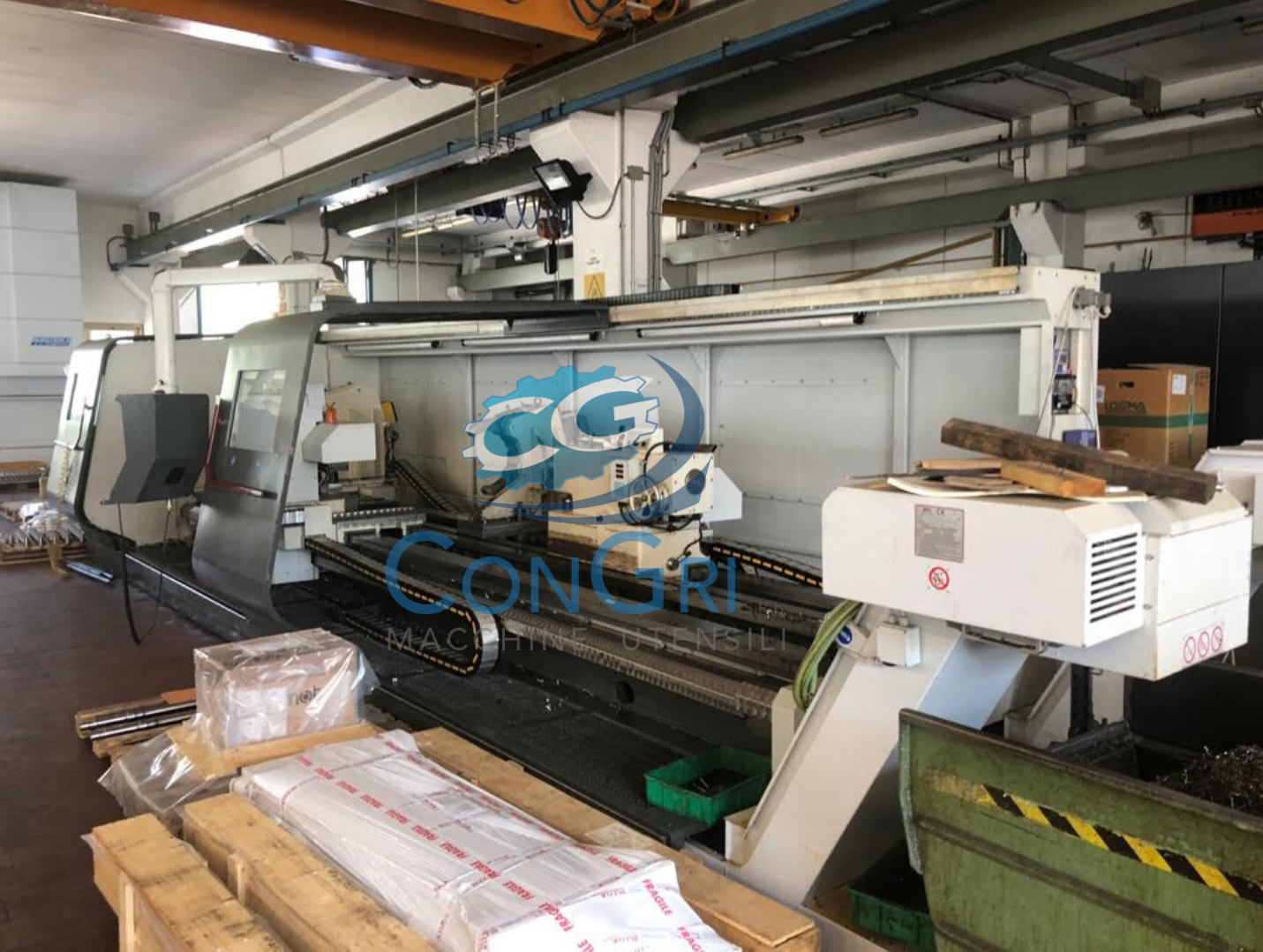

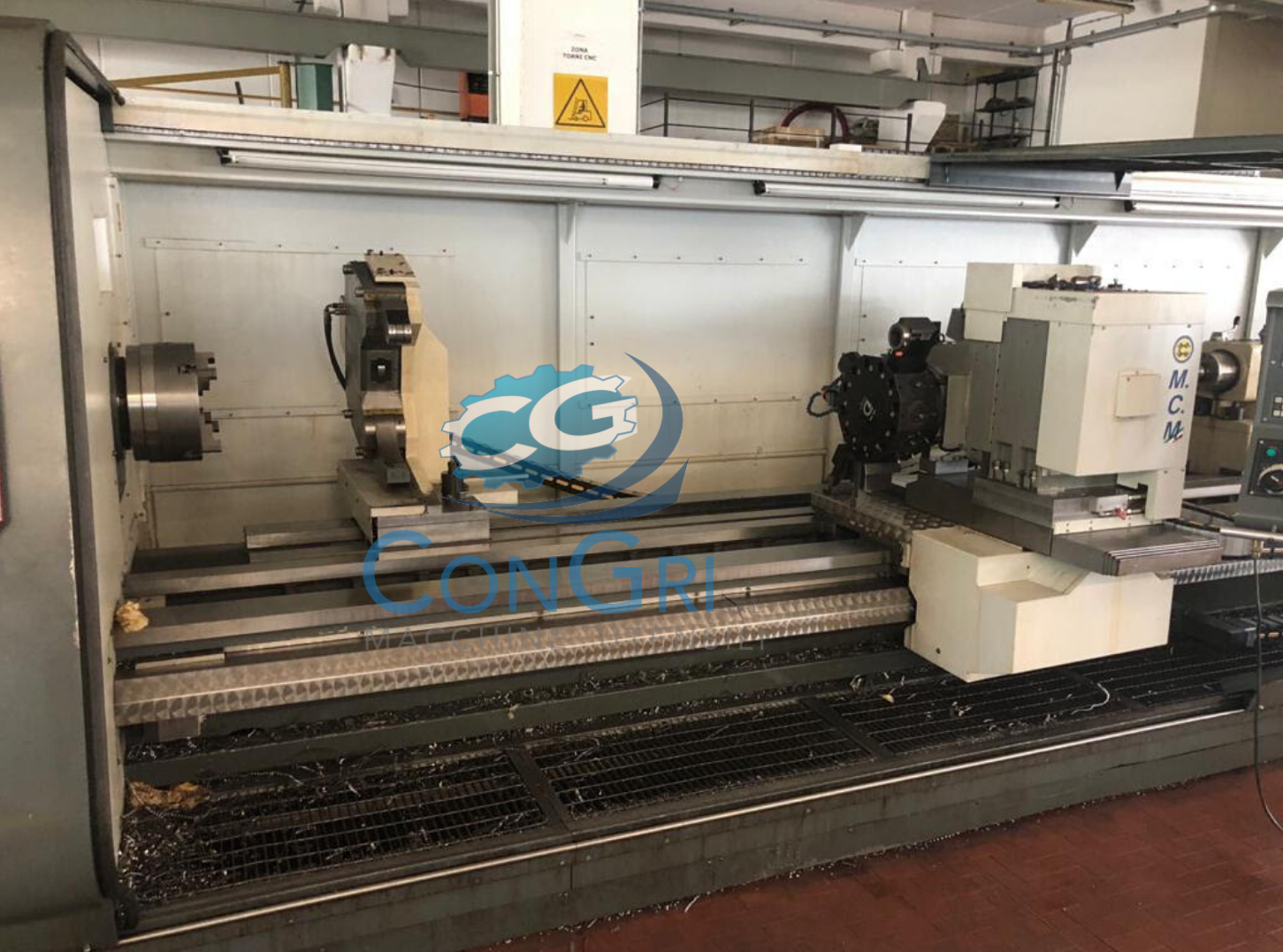

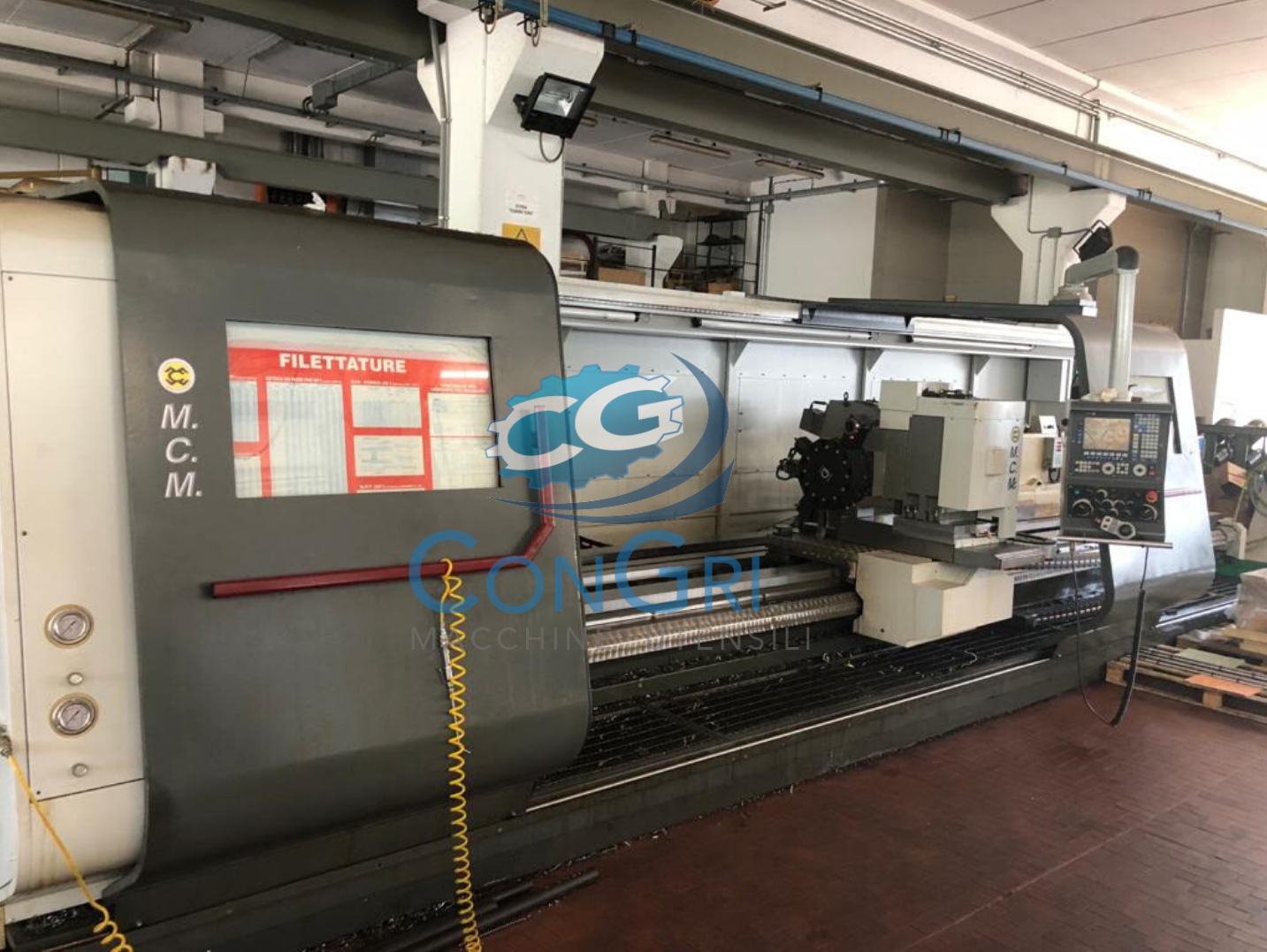

Self-learning 5 STAR 80 MCM lathe
Self-learning 5 STAR 80 lathe by MCM
Top-quality product.
Very structured machine, with 4 flat guides. Interesting price.
Data Sheet
| YEAR | 2012 |
|---|---|
| DISTANCE OF THE POINTS | mm. 6.000 |
| ROTATING DIAMETER (max) | mm. 1.000 |
| TURNING DIAMETER (max) | mm. 800 (sulla slitta) |
| MAIN SPINDLE | |
| SPINDLE NOSE (ASA attachment) | Asa A2-15 |
| SPINDLE SPEED (min./max.) | g./min. 1.000 (2 gamme meccaniche) |
| POWER OF THE SPINDLE ENGINE (kW) | Kw. 37 |
| BAR PASSAGE | mm. 130 |
| COUNTERSPINDLE: | |
| SPINDLE NOSE (ASA attachment) | |
| SPINDLE SPEED (min./max.) | |
| POWER OF THE SPINDLE ENGINE (kW) | |
| BAR PASSAGE | |
| NUMBER OF UPPER TURRETS | 1 |
| NUMBER OF LOWER TURRETS | / |
| X AXIS COURSE | mm. 500 |
| Z AXIS COURSE | mm. 6.000 |
| Y AXIS COURSE | mm. 130 (+/-65 mm.) |
| X2 AXIS COURSE | / |
| Z2 AXIS COURSE | / |
| Y2 AXIS COURSE | / |
| X3 AXIS COURSE | / |
| Z3 AXIS COURSE | / |
| Y3 AXIS COURSE | / |
| RAPID FEEDS | / |

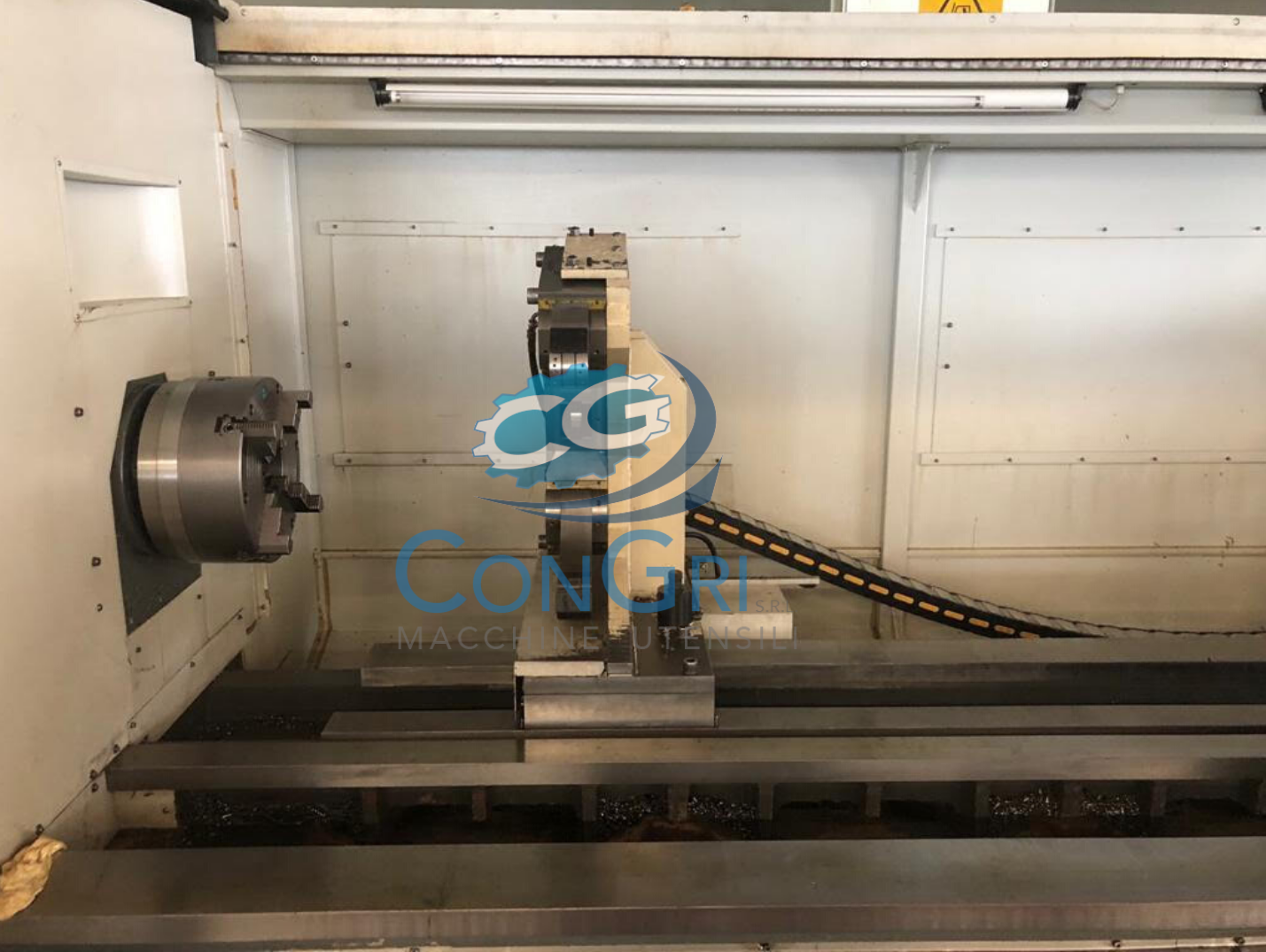

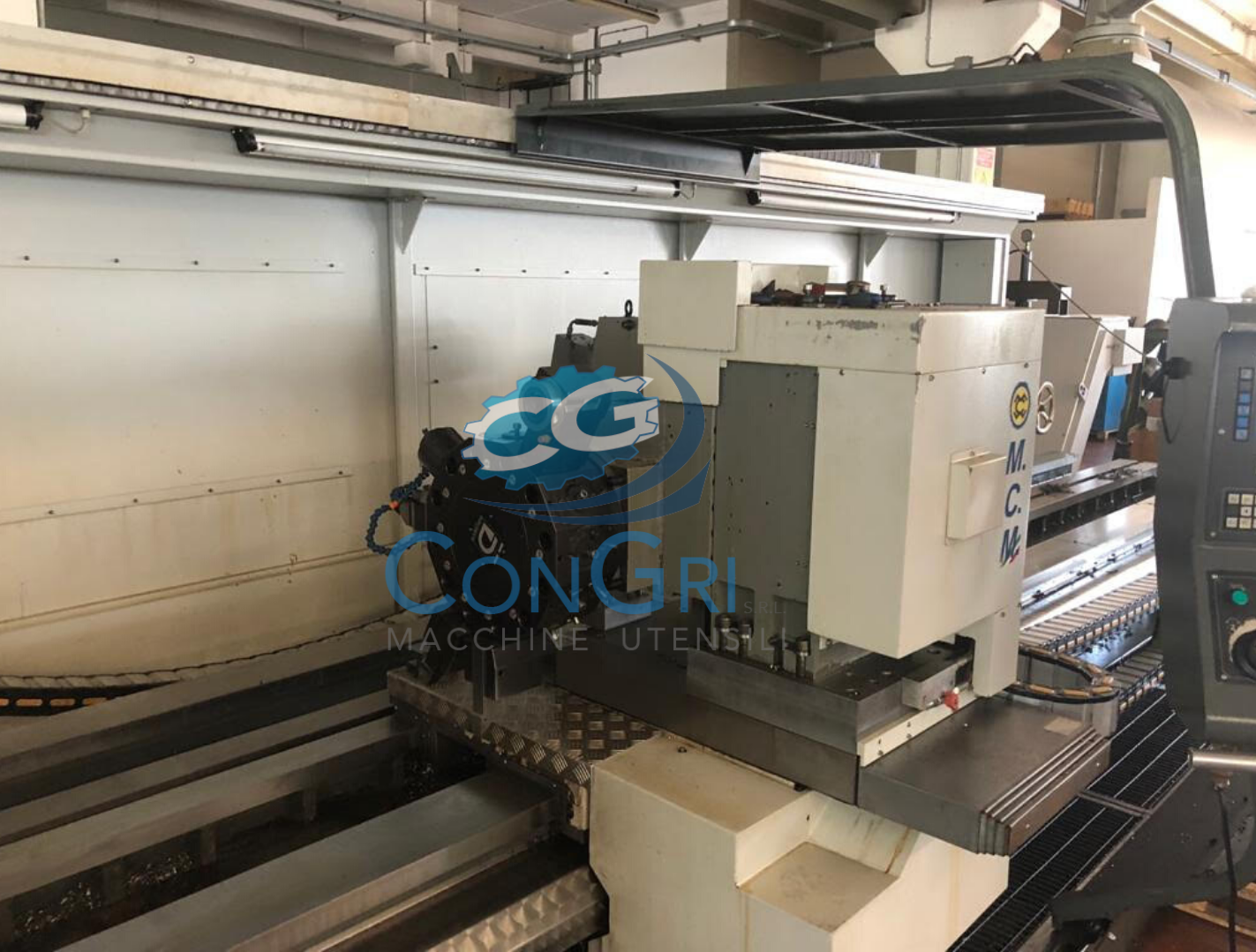

| TOOL TURRET (Model) | VDI 50 Duplomatic Motorizzata |
| NUMBER OF TOOL POSITIONS: | |
| T1 | 12 |
| T2 | / |
| T3 | / |

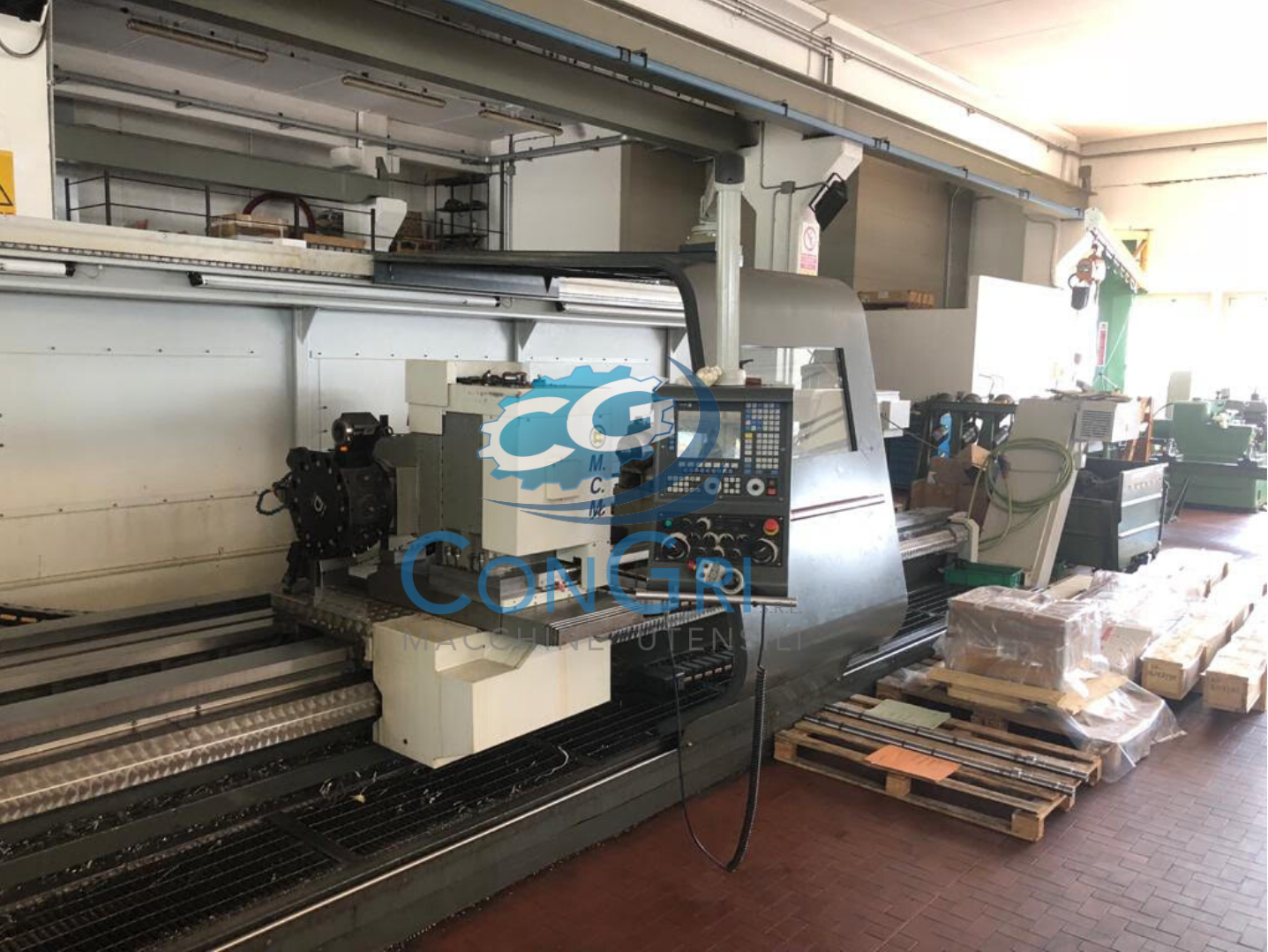

| CONTROL | Fagor 8055 |
| DIMENSIONS L P H | / |
| WEIGHT | Kg. 25000 |
| ACCESSORIES INCLUDED | N.2 belt chip conveyors, front and rear n.2 hydraulic bezels n.1 hydraulic self-centring spindle of mm. 400 Hydraulic tailstock with motorized advancement |
| NOTES | |
