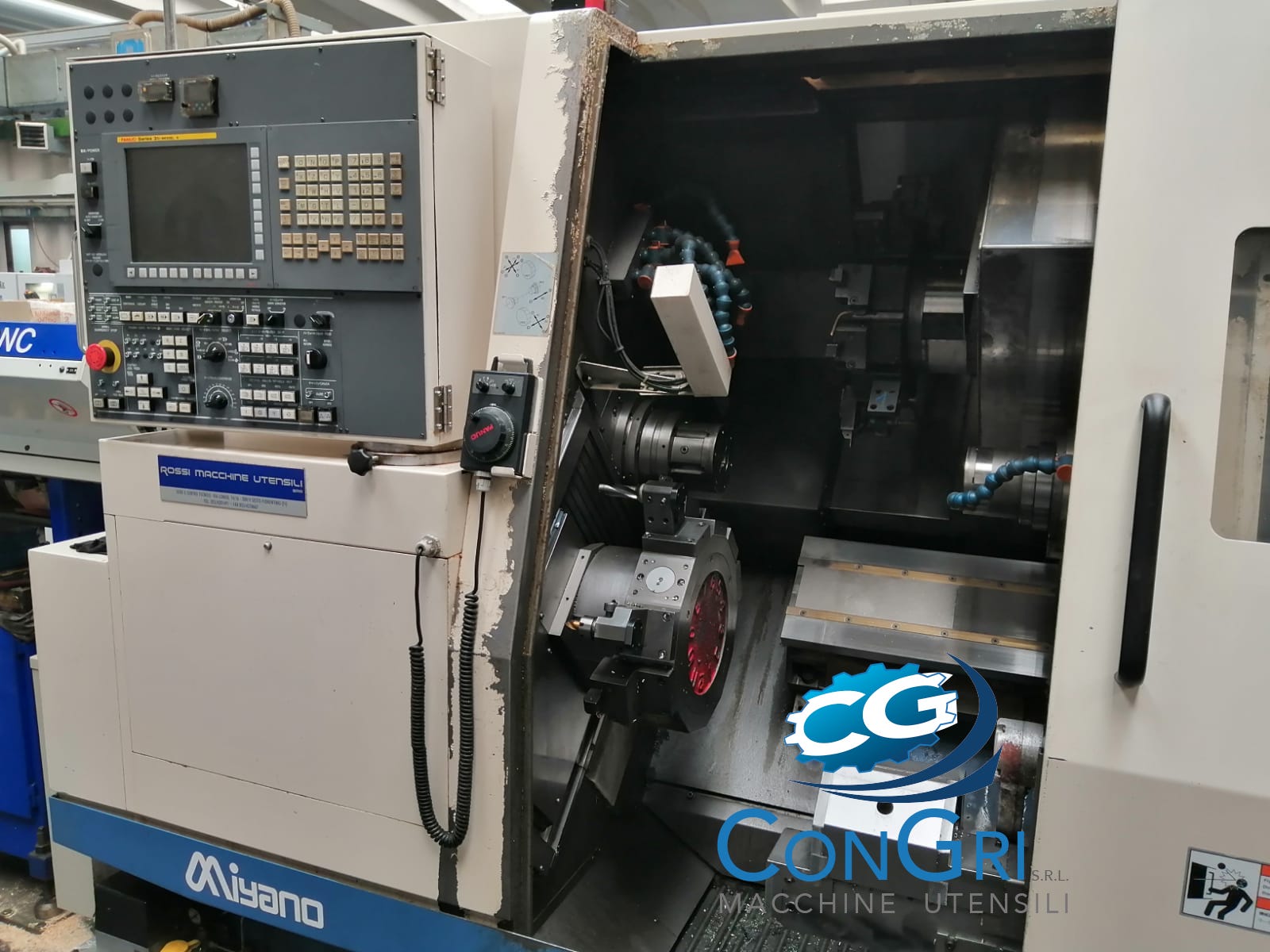

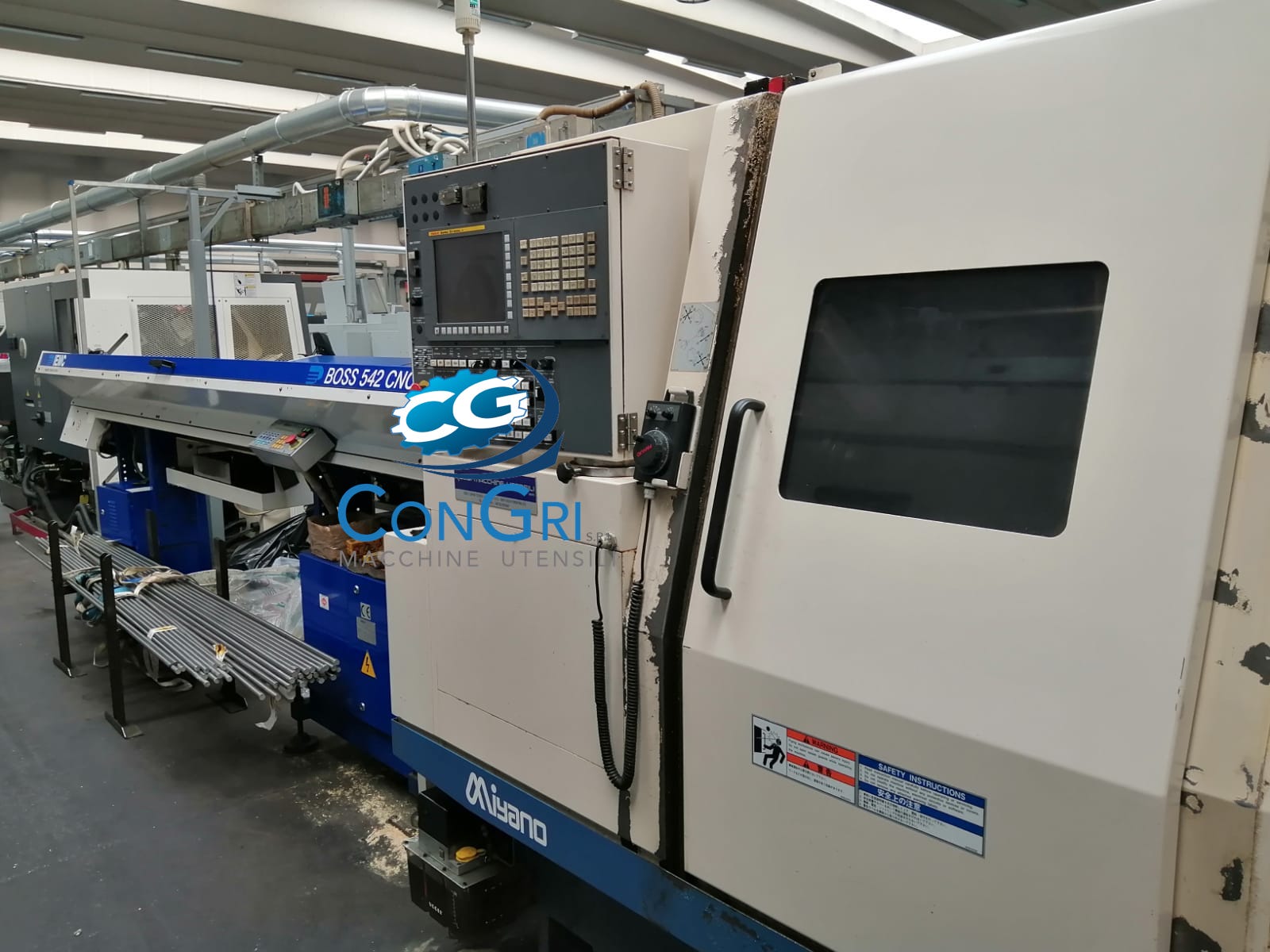

Miyano BNE-51 SY5 CNC lathe with Iemca bar loader model Boss 542 cnc

Miyano BNE 51 SY5 cnc lathe complete with Iemca bar feeder (model Boss 542 cnc)

Technical characteristics:

Main spindle with bar passage 51 mm. / Power in Kw. 15 / revolutions 50-5.000 min.1

Secondary spindle with bar passage 51 mm. / Power in Kw. 5.5 / rpm 50-5.000 min.1

Turret 1 with 12 tool positions all motorized / strokes X 175 mm. Z 380 mm. Y +- 40 mm.

Turret 2 with 12 tool positions all motorized / strokes X 145 mm. Z 175 mm.

Motorized tools: min. rpm 0-6000 / power 2.2-8.3 Kw.

Fanuc control
