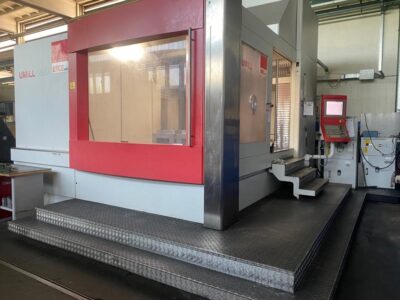

EMCO UMILL 1800 5-axis machining center
EMCO UMILL 1800 5-axis machining center
ConGri Macchine Utensili offers a EMCO UMILL 1800 5-axis machining center complete with accessories in excellent condition. Contact us for a quote.
Technical Datasheet
| YEAR | 2016 |
| X AXIS COURSE | mm. 1.800 |
| Y AXIS COURSE | mm. 2.150 |
| Z AXIS COURSE | mm. 1.250 |

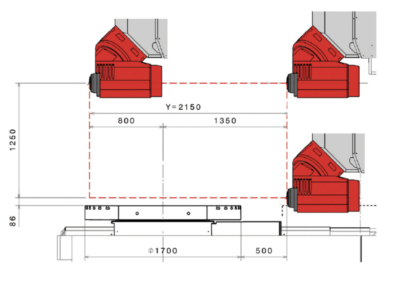

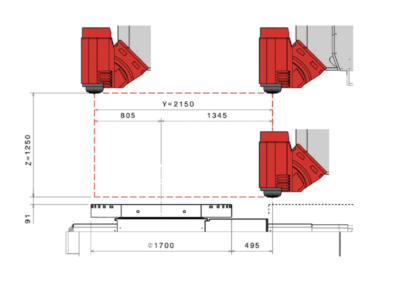

| SPINDLE NOSE DISTANCE TABLE TOP | con mandrino orizzontale mm. 86 con mandrino verticale mm. 91 |
| SPINDLE AXIS COLUMN DISTANCE | |
| X-Y-Z RAPID FEEDS | |
| SPINDLE (ISO or other) | Continuous head with electrospindle HSK 100 |
| SPINDLE MOTOR POWER KW | Kw 45/58 (S1/S6) coppia 300/372 (S1/S6) |
| SPINDLE SPEED (Min. Max) | RPM 12.000 |

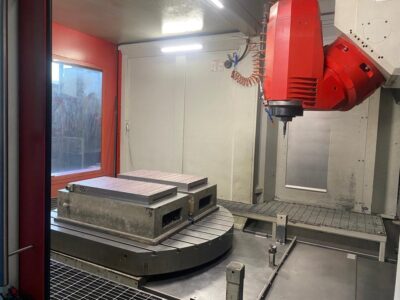

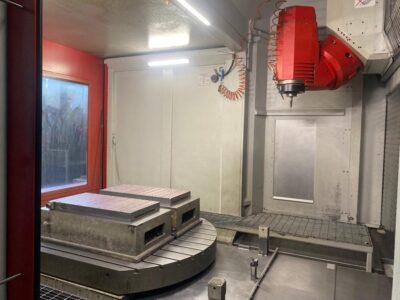

| TABLE SIZE | Workpiece rotary table maximum workable diameter mm. 2,500 / mm. 1860 between columns |
| MAX LOAD ALLOWED | Kg. 10.000 |
| NUMBER OF TOOLS IN STOCK | 200 pos. |
| MAX. TOOL DIAMETER | |
| MAX. TOOL LENGTH | |
| MAX. TOOL WEIGHT | |
| CHIP-TO-CHIP CHANGE TIME | |

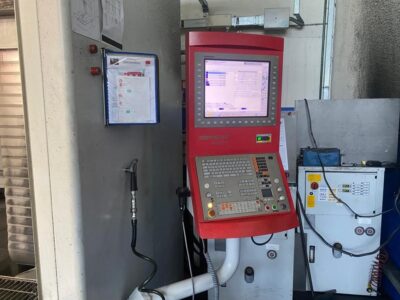

| CONTROL | Heidenhain |

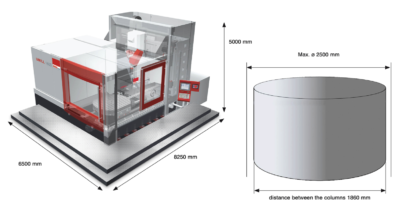

| DIMENSIONS L P H | mm. 6.500 X 8.250 X mm. 5.000 |
| WEIGHT | |
| ACCESSORIES | Continuous head with undercut -15° |

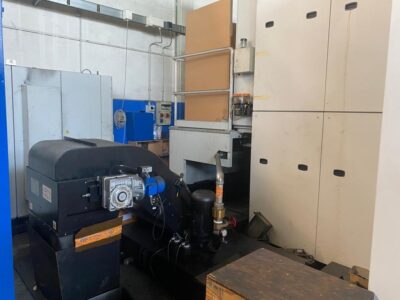

| NOTES | Belt-type chip evacuator / 200-position tool changer / 200 HSK 100 tool holders / Automatic tap. |
All technical data shown are indicative, may be changed without notice and refer to the standard condition of new goods. Used goods may not have the same performance as new.
