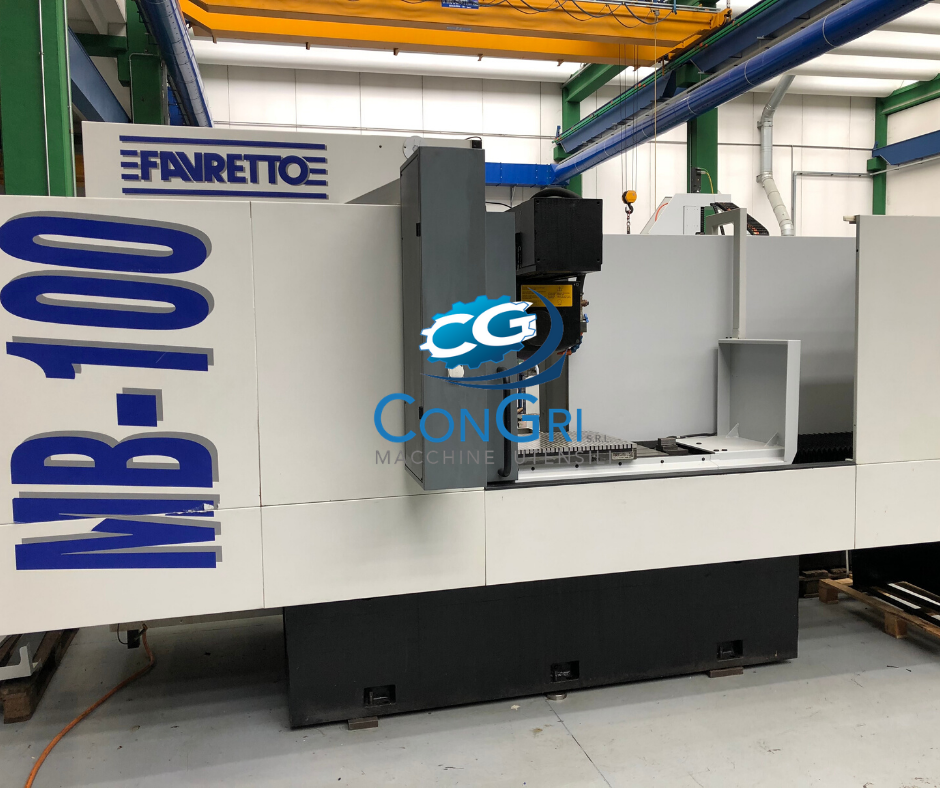

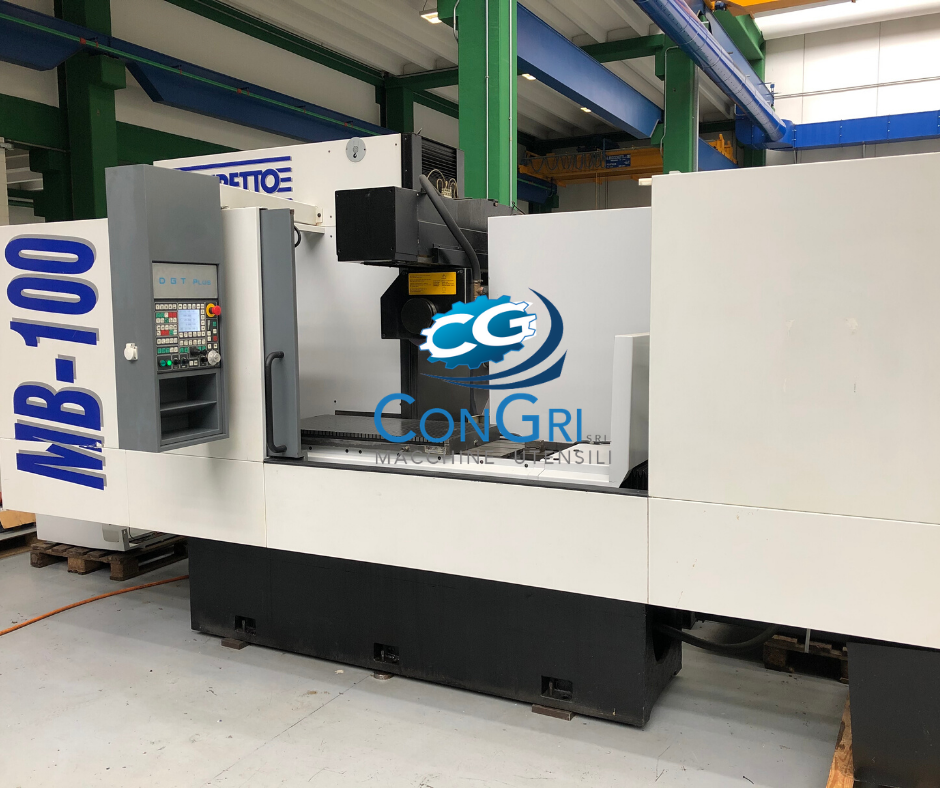

Edgewheel Grinder MB100 DTG Plus by Favretto

Second-hand Edgewheel Grinder MB100 DTG Plus by Favretto. The grinder works and was checked by our team of experts. Grinding mm. 1000ร—600.
CNC control and possibility to grind and program different planes. Interesting price.

Data Sheet



YEAR2003
CODE
TECHNICAL DATA:
MAX GRINDING LENGTHmm. 1.000
MAX GRINDING WIDTHmm. 600
MAX GRINDING HEIGHTmm. 550
TABLE SIZEmm. 1.000 X 400
LONGITUDINAL SPEED OF THE TABLEm./min. 1-40
TRANSVERSAL SPEED OF THE TABLE
SNAP TRANSVERSAL SPEED
MAX ADMITTED LOADKg. 975

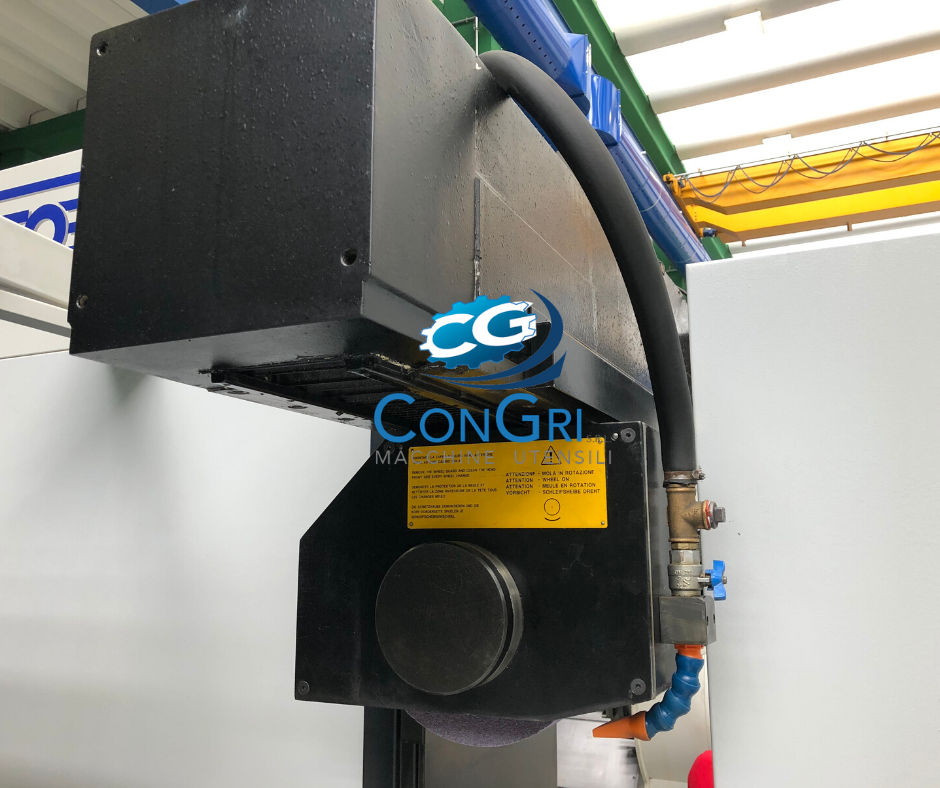

GRINDER:
GRINDING WHEEL SIZEmm. 406X100X152,74
GRINDING WHEEL SPEEDRpm./Min. 1.450
MOTOR POWER:
ENGINE OF MANDRIN THAT SUPPORTS THE GRINDERKw. 11
ENGINE OF THE HYDRAULIC COMPONENTS

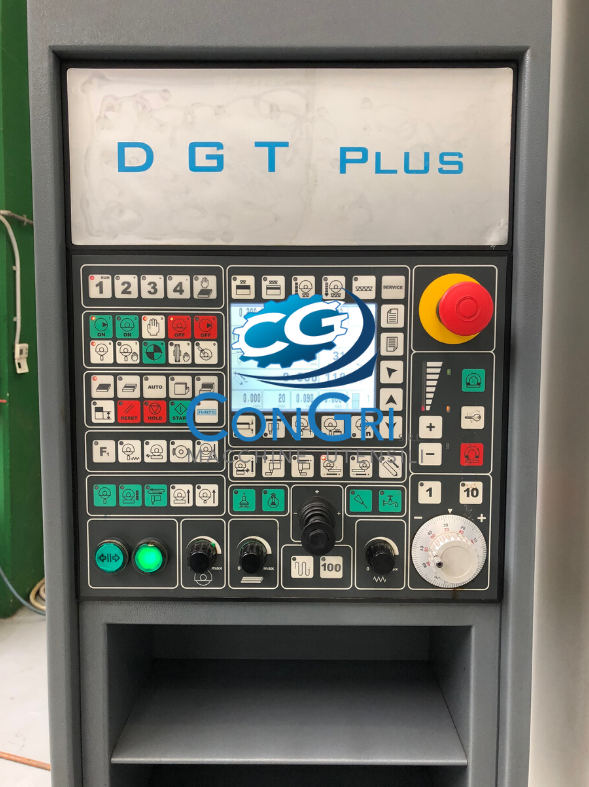

CONTROL UNITCN DGT PLUS
MACHINE FOOTPRINT:
WEIGHTKg. 6700
OVERALL DIMENSIONSmm. 4.450 X 2.550 X 2.690

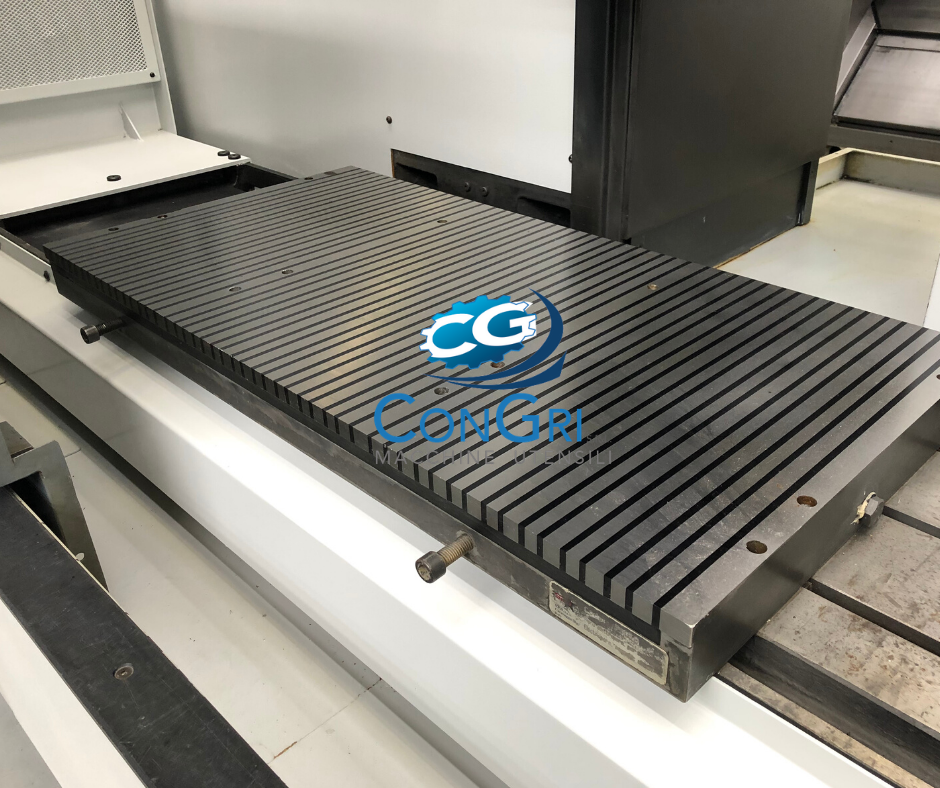

ACCESSORIESMagnetic plane dim. mm. 1.000 X 500

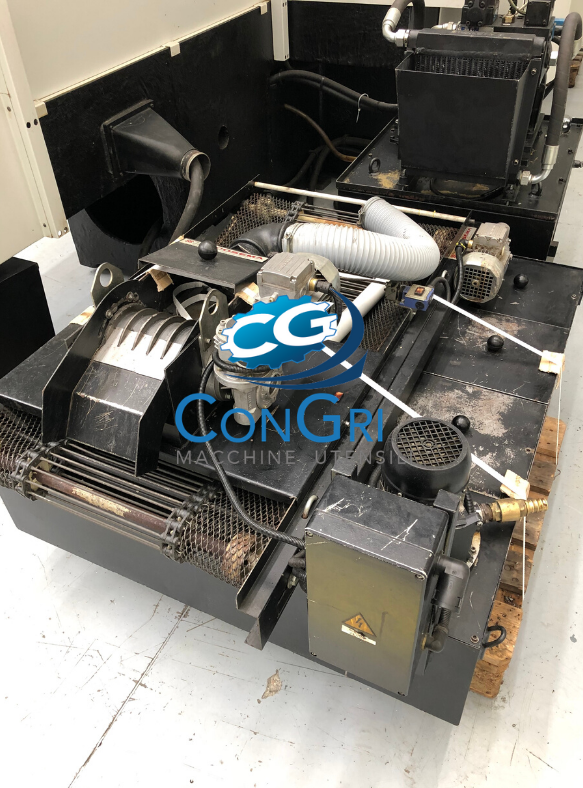

Purifier with paper filter

Bench diamond cutting with automatic compensation

Air Oil Exchanger

NOTEUphauled machine with WARRANTY / A CE regulation
All technical data are indicative, may be changed without notice and refer to the standard conditions of the new good. The second-hand good may not have the same performance as the new one.
