Edgewheel Grinder Avion 13.7 N by Rosa Ermando
Edgewheel Grinder Avion 13.7 N by Rosa Ermando

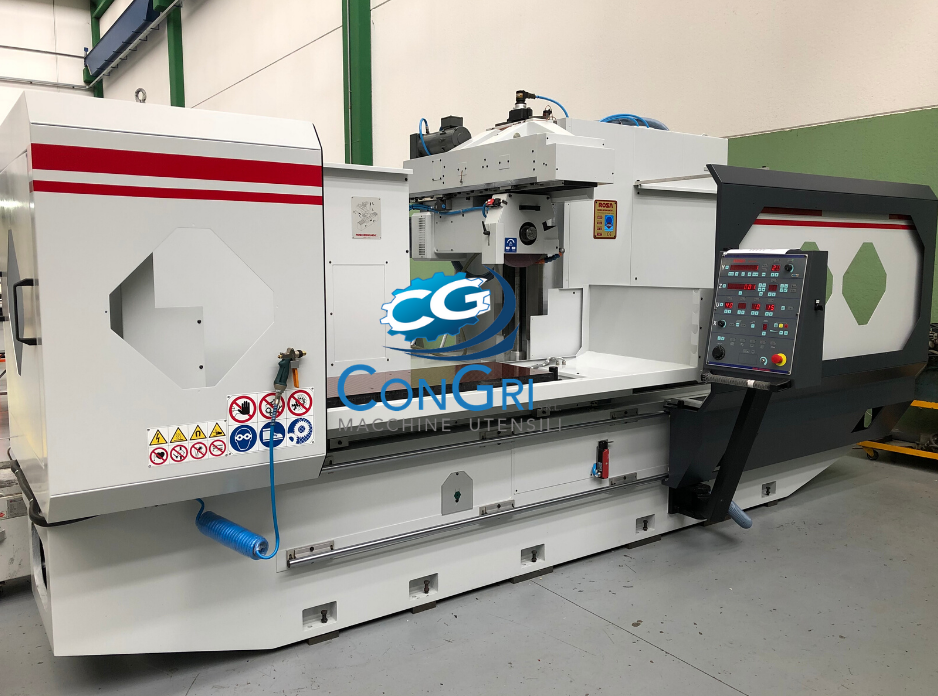

ConGri Macchine Utensili offers a used and overhauled Edgewheel Grinder Avion 13.7 N by Rosa Ermando with warranty. Grinding mm. 1300×750.
Data Sheet
| YEAR | 1996 |
| CODE | |
| TECHNICAL DATA: | |
| MAX GRINDING LENGTH | mm. 1.300 |
| MAX GRINDING WIDTH | mm. 750 |
| MAX GRINDING HEIGHT | mm. 600 |
| TABLE SIZE | mm. 1.400 X 500 |
| LONGITUDINAL SPEED OF THE TABLE | m./min. 1-40 |
| TRANSVERSAL SPEED OF THE TABLE | m./min. 0-4 |
| SNAP TRANSVERSAL SPEED | mm. 0-30 |
| MAX ADMITTED LOAD | Kg. 1.700 |
| GRINDER: | |
| GRINDING WHEEL SIZE | mm. 400X100X127 |
| GRINDING WHEEL SPEED | Rpm./Min. 1.450 |
| MOTOR POWER: | |
| ENGINE OF MANDRIN THAT SUPPORTS THE GRINDER | Kw. 11,5 |
| ENGINE OF THE HYDRAULIC COMPONENTS | Kw. 3 |

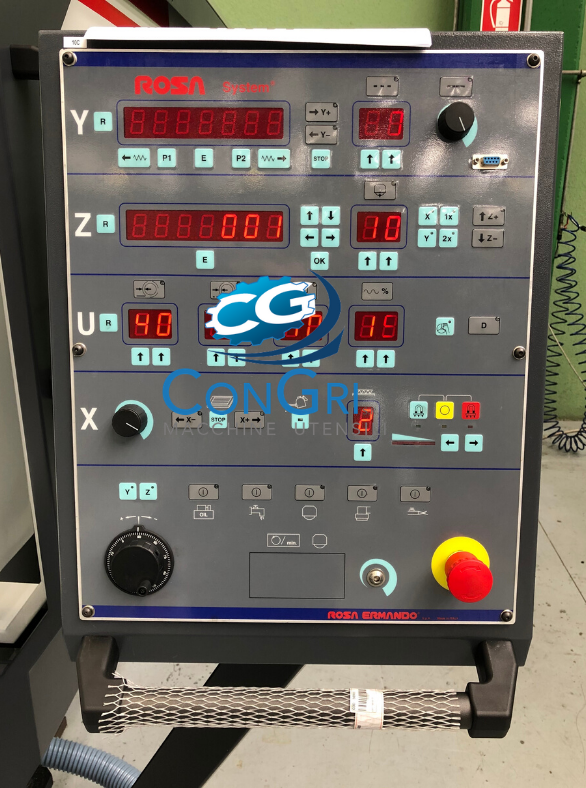

| CONTROL UNIT | ROSA SYSTEM N |
| MACHINE FOOTPRINT: | |
| WEIGHT | Kg. 8.700 |
| OVERALL DIMENSIONS | mm. 5.200 X 2.600 X 2.500 |

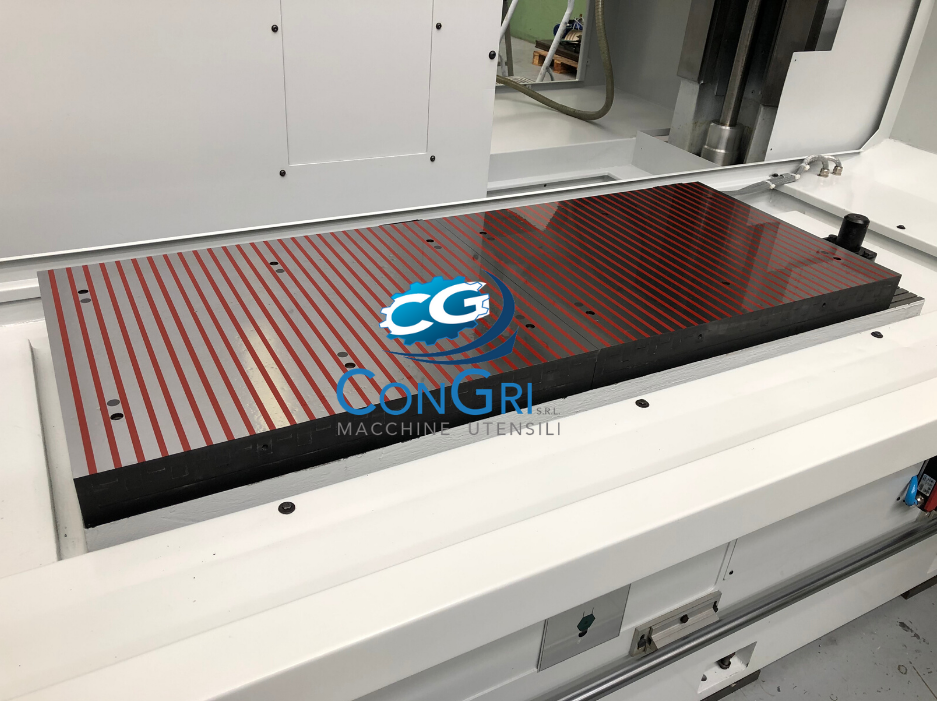

| ACCESSORIES | Electronic magnetic board 1.300x500x70 Purifier with paper filter Bench diamond cutting with automatic compensation Oil/air exchanger |
| NOTE | Overhauled machine with warranty / A CE Compliant |
