Procast Vertical Lathe

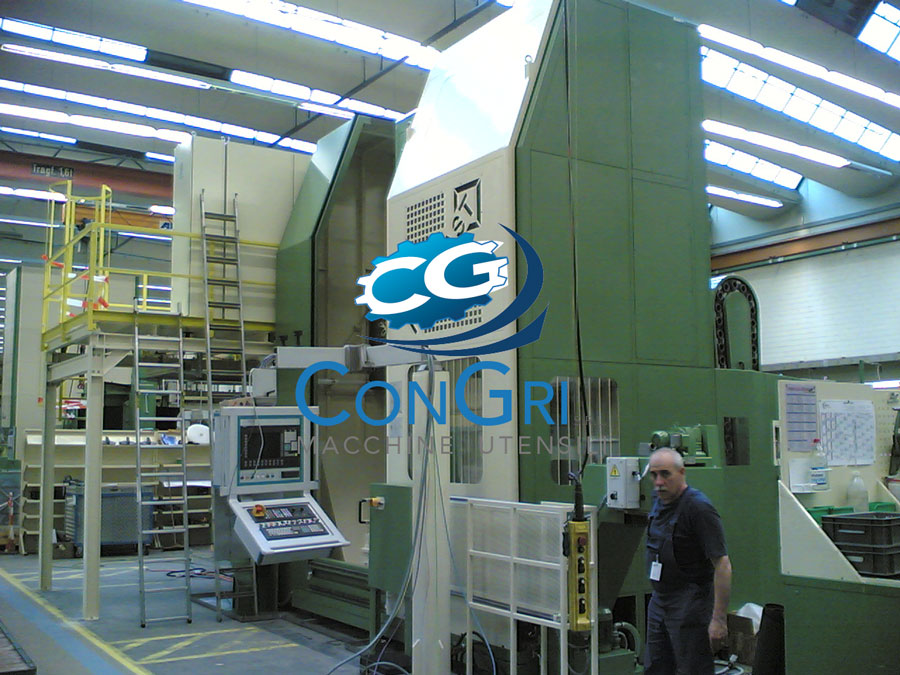

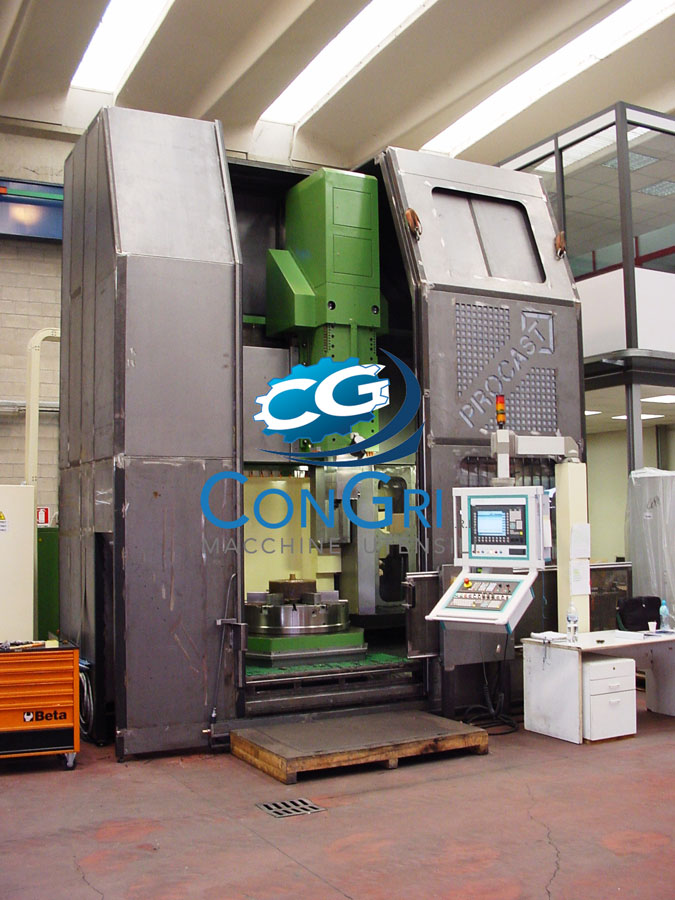

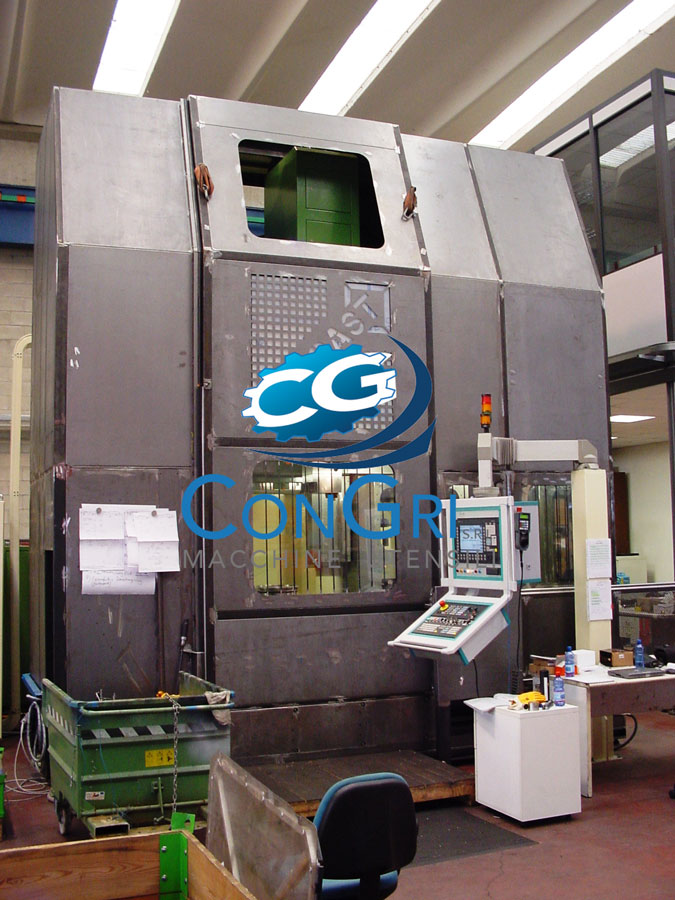

ConGri Macchine Utensili sells a Procast vertical lathe in excellent conditions.

Data sheet



YEAR2006
WORK CAPACITY:
Table diametermm. 1.000
Turning Diameter (max)mm. 1.450
Max. Kg. load on tableKg. 6.000
Turning Length (max)mm. 1.000
Spindle speed (max.)Rpm/1 400
N. of Gear boxN. 2
Power of speendle KW (S1)Kw. 60
Max. Torque (Nm.)Nm. 21.500
SLIDE:
RAM Dimensionmm. 250 X 250
X Axis travelmm.- 800 /1.550
Z Axis travelmm. 1.065
Torque nominal motor (Nm)Nm. 27 (X) / 27 (Z)
Nominal Thrust force (Nm)N. 27.100 (X) / 19.260 (Z)
Rapid Feedratemm.1 15.000
TOOL MAGAZINE:
Number of tools90
Tool typeCapto C6
Max wheigt of single toolKg. 15
Max Lenght of single toolmm. 300
CONTROLSIEMENS 840D
DIMENSIONS L P Hmm.8.410 X 4845 x 5.487
WEIGHTKg. NA
ACCESSORIES INCLUDED
Asse X e asse Z idrostatici,n.1 mandrino autocentrante automatico idraulico a 6 griffe dia. mm.1.000 Rotomors. X axis and Z axis are idrostatics,n.1 idraulic chuck whit 6 clamps automatic mm. 1.000 diameter Rotomors.



All technical data are indicative, may be changed without notice and refer to the standard conditions of the new good. The second-hand good may not have the same performance as the new one.
