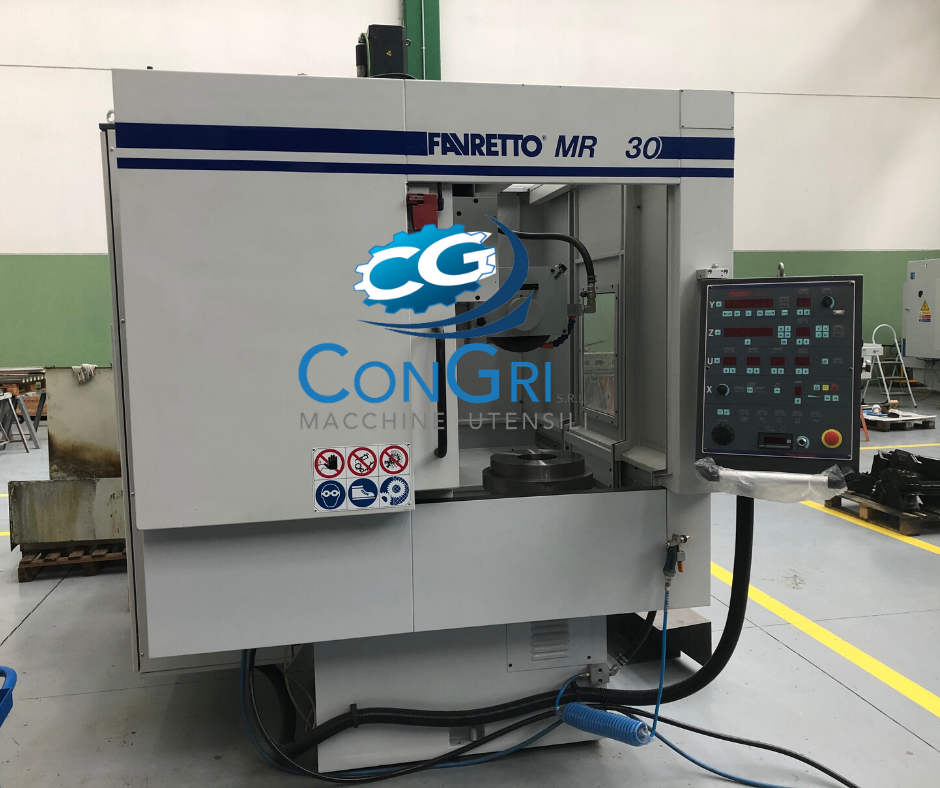

Edgewheel grinder provided with rotary table MR 30 N by Favretto
Edgewheel grinder provided with rotary table MR 30 N by Favretto
ConGri Macchine Utensili offers a used and overhauled Favretto MR 30 N rotary table edgewheel grinding machine with warranty. Grinding diameter mm. 400×580.
Data Sheet
| YEAR | 2004 |
| CODE | |
| TECHNICAL DATA: | |
| MAX GRINDING LENGTH | |
| MAX GRINDING WIDTH | mm. 400 |
| MAX GRINDING HEIGHT | mm. 580 |
| TABLE SIZE | mm. 300 |
| LONGITUDINAL SPEED OF THE TABLE | m./min. 0-150 |
| TRANSVERSAL SPEED OF THE TABLE | m./min. 0-5 |
| SNAP TRANSVERSAL SPEED | |
| MAX ADMITTED LOAD | |
| GRINDER: | |
| GRINDING WHEEL SIZE | mm. 350X60X127 |
| GRINDING WHEEL SPEED | Rpm./Min. 1.450 |
| MOTOR POWER: | |
| ENGINE OF MANDRIN THAT SUPPORTS THE GRINDER | Kw. 16 |
| ENGINE OF THE HYDRAULIC COMPONENTS | |

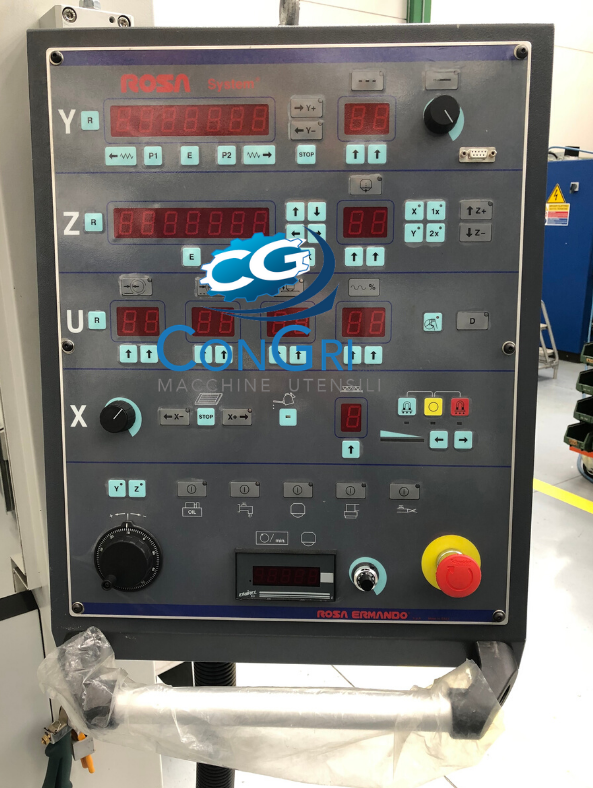

| CONTROL UNIT | ROSA SYSTEM N |
| MACHINE FOOTPRINT: | |
| WEIGHT | Kg. 4.000 |
| OVERALL DIMENSIONS | mm. 2.400 X 2.300 X 2.800 |

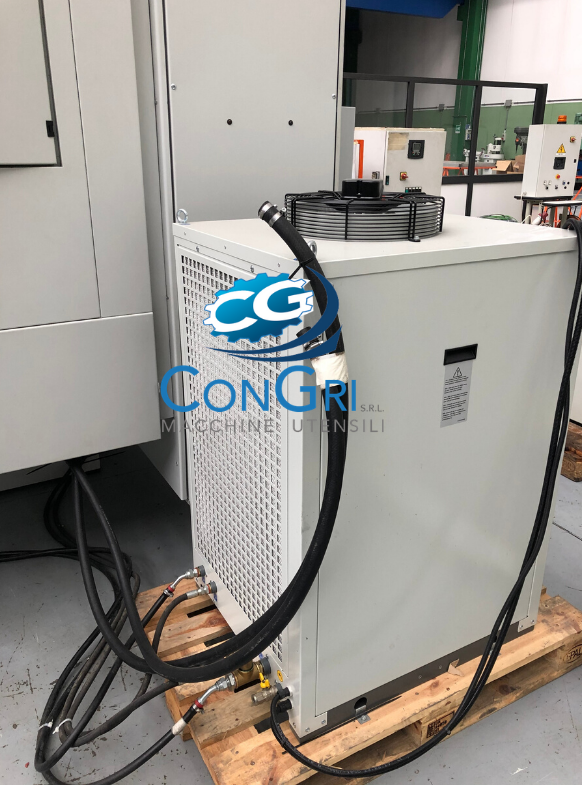

| ACCESSORIES | Torque table motor Purifier with paper filter Countertop diamond cutting with automatic compensation Refrigerator exchanger |
| NOTE | Uphauled machine with WARRANTY / A CE regulation |
All technical data are indicative, may be changed without notice and refer to the standard conditions of the new good. The second-hand good may not have the same performance as the new one.
